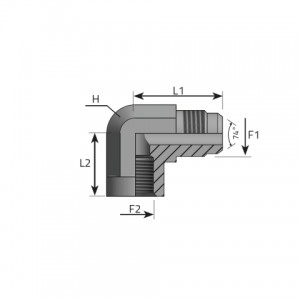

| Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| LMJ04FFG02 | 7/16 | 1/8 | 14 | 27.50 | 17.00 | 345 bar 5003 psi |
| LMJ04FFG04 | 7/16 | 1/4 | 19 | 29.00 | 22.50 | 345 bar 5003 psi |
| LMJ05FFG02 | 1/2 | 1/8 | 14 | 27.50 | 17.00 | 345 bar 5003 psi |
| LMJ05FFG04 | 1/2 | 1/4 | 19 | 29.00 | 22.50 | 345 bar 5003 psi |
| LMJ06FFG02 | 9/16 | 1/8 | 14 | 27.50 | 17.00 | 345 bar 5003 psi |
| LMJ06FFG04 | 9/16 | 1/4 | 19 | 31.00 | 22.50 | 345 bar 5003 psi |
| LMJ06FFG06 | 9/16 | 3/8 | 22 | 31.50 | 26.00 | 310 bar 4495 psi |
| LMJ08FFG04 | 3/4 | 1/4 | 19 | 32.00 | 22.50 | 310 bar 4495 psi |
| LMJ08FFG06 | 3/4 | 3/8 | 22 | 36.00 | 26.00 | 310 bar 4495 psi |
| LMJ10FFG08 | 7/8 | 1/2 | 27 | 42.00 | 31.00 | 240 bar 3480 psi |
| LMJ12FFG08 | 1 1/16 | 1/2 | 27 | 42.00 | 31.00 | 240 bar 3480 psi |
| LMJ12FFG12 | 1 1/16 | 3/4 | 33 | 48.00 | 34.50 | 240 bar 3480 psi |
| LMJ16FFG16 | 1 5/16 | 1 | 41 | 55.00 | 41.00 | 210 bar 3045 psi |
| LMJ20FFG16 | 1 5/8 | 1 | 41 | 52.50 | 41.00 | 170 bar 2465 psi |
