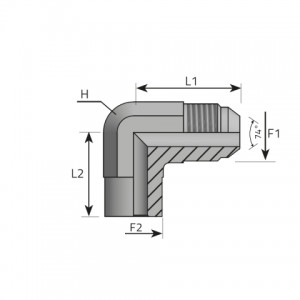

| Code | F1 inch | F2 mm | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| LMJ04W | 7/16 | M 15.0 | 14 | 31.00 | 22.50 | 345 bar 5003 psi |
| LMJ05W | 1/2 | M 15.0 | 14 | 31.00 | 22.50 | 345 bar 5003 psi |
| LMJ06W | 9/16 | M 15.0 | 14 | 31.00 | 22.50 | 345 bar 5003 psi |
| LMJ08W | 3/4 | M 20.0 | 19 | 36.00 | 26.00 | 310 bar 4495 psi |
| LMJ10W | 7/8 | M 23.0 | 22 | 41.50 | 31.00 | 240 bar 3480 psi |
| LMJ12W | 1 1/16 | M 28.0 | 27 | 48.00 | 34.50 | 240 bar 3480 psi |
| LMJ16W | 1 5/16 | M 35.0 | 33 | 52.00 | 41.00 | 310 bar 4495 psi |
| LMJ20W | 1 5/8 | M 42.0 | 41 | 57.00 | 48.00 | 170 bar 2465 psi |
