Welding male elbow. (LME..LSW)

Brand : Vitillo

Vitillo Din Fittings Welding male elbow. (LME..LSW)

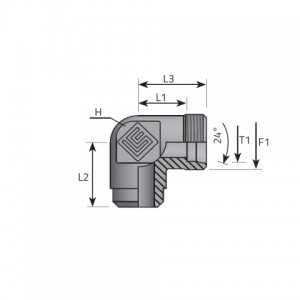

Code F1 mm F1 Pitch mm H mm L1 mm L2 mm L3 mm D mm T1 mm Pressure Series
LME06LW.1 M 12.0 X 1.50 12 12.00 19.00 19.00 10.00 6 315 bar
4568 psi
L
LME06SW.1 M 14.0 X 1.50 12 16.00 23.00 23.00 11.00 6 630 bar
9137 psi
S
LME08LW.1 M 14.0 X 1.50 12 14.00 21.00 21.00 12.00 8 315 bar
4568 psi
L
LME08SW.1 M 16.0 X 1.50 14 17.00 24.00 24.00 13.00 8 630 bar
9137 psi
S
LME10LW.1 M 16.0 X 1.50 14 15.00 22.00 22.00 14.00 10 315 bar
4568 psi
L
LME10SW.1 M 18.0 X 1.50 17 17.50 25.00 25.00 15.00 10 630 bar
9137 psi
S
LME12LW.1 M 18.0 X 1.50 17 17.00 24.00 24.00 16.00 12 315 bar
4568 psi
L
LME12SW.1 M 20.0 X 1.50 17 21.50 29.00 29.00 17.00 12 630 bar
9137 psi
S
LME14SW.1 M 22.0 X 1.50 19 22.00 30.00 30.00 19.00 14 630 bar
9137 psi
S
LME15LW.1 M 22.0 X 1.50 19 21.00 28.00 28.00 19.00 15 315 bar
4568 psi
L
LME16SW.1 M 24.0 X 1.50 24 24.50 33.00 33.00 21.00 16 400 bar
5801 psi
S
LME18LW.1 M 26.0 X 1.50 24 23.50 31.00 31.00 22.00 18 315 bar
4568 psi
L
LME20SW.1 M 30.0 X 2.00 27 26.50 37.00 37.00 26.00 20 400 bar
5801 psi
S
LME22LW.1 M 30.0 X 2.00 27 27.50 35.00 35.00 27.00 22 160 bar
2320 psi
L
LME25SW.1 M 36.0 X 2.00 36 30.00 42.00 42.00 31.00 25 400 bar
5801 psi
S
LME28LW.1 M 36.0 X 2.00 36 30.50 38.00 38.00 32.00 28 160 bar
2320 psi
L
LME30SW.1 M 42.0 X 2.00 41 35.50 49.00 49.00 36.00 30 400 bar
5801 psi
S
LME35LW.1 M 45.0 X 2.00 41 34.50 45.00 45.00 40.00 35 160 bar
2320 psi
L
LME38SW.1 M 52.0 X 2.00 50 41.00 57.00 57.00 44.00 38 315 bar
4568 psi
S
LME42LW.1 M 52.0 X 2.00 50 40.00 51.00 51.00 46.00 42 160 bar
2320 psi
L
