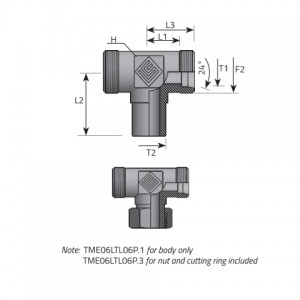

Tee Rotary fitting. (TME..LSTLS..P)

Brand : Vitillo


Code	F1 mm	F1 Pitch mm	H mm	L1 mm	L2 mm	L3 mm	T1 mm	T2 mm	Pressure	Series
TME06LTL06P.1	M 12.0	X 1.50	12	12.00	26.00	19.00	6	6	315 bar 4568 psi	L
TME06STS06P.1	M 14.0	X 1.50	12	16.00	27.00	23.00	6	6	630 bar 9137 psi	S
TME08LTL08P.1	M 14.0	X 1.50	12	14.00	27.50	21.00	8	8	315 bar 4568 psi	L
TME08STS08P.1	M 16.0	X 1.50	14	17.00	27.50	24.00	8	8	630 bar 9137 psi	S
TME10LTL10P.1	M 16.0	X 1.50	14	15.00	29.00	22.00	10	10	315 bar 4568 psi	L
TME10STS10P.1	M 18.0	X 1.50	17	17.50	30.00	25.00	10	10	630 bar 9137 psi	S
TME12LTL12P.1	M 18.0	X 1.50	17	17.00	29.50	24.00	12	12	315 bar 4568 psi	L
TME12STS12P.1	M 20.0	X 1.50	17	21.50	31.00	29.00	12	12	630 bar 9137 psi	S
TME14STS14P.1	M 22.0	X 1.50	19	22.00	35.00	30.00	14	14	630 bar 9137 psi	S
TME15LTL15P.1	M 22.0	X 1.50	19	21.00	32.50	28.00	15	15	315 bar 4568 psi	L
TME16STS16P.1	M 24.0	X 1.50	24	24.50	36.50	33.00	16	16	400 bar 5801 psi	S
TME18LTL18P.1	M 26.0	X 1.50	24	23.50	35.50	31.00	18	18	315 bar 4568 psi	L
TME20STS20P.1	M 30.0	X 2.00	27	26.50	44.50	37.00	20	20	400 bar 5801 psi	S
TME22LTL22P.1	M 30.0	X 2.00	27	27.50	38.50	35.00	22	22	160 bar 2320 psi	L
TME25STS25P.1	M 36.0	X 2.00	36	30.00	50.00	42.00	25	25	400 bar 5801 psi	S
TME28LTL28P.1	M 36.0	X 2.00	36	30.50	41.50	38.00	28	28	160 bar 2320 psi	L
TME30STS30P.1	M 42.0	X 2.00	41	35.50	55.00	49.00	30	30	400 bar 5801 psi	S
TME35LTL35P.1	M 45.0	X 2.00	41	34.50	51.00	45.00	35	35	160 bar 2320 psi	L
TME38STS38P.1	M 52.0	X 2.00	50	41.00	63.00	57.00	38	38	315 bar 4568 psi	S
TME42LTL42P.1	M 52.0	X 2.00	50	40.00	56.00	51.00	42	42	160 bar 2320 psi	L
