Tee Rotary fitting. (TME..LSTLS..B)

Brand : Vitillo

Vitillo Din Fittings Tee Rotary fitting. (TME..LSTLS..B)

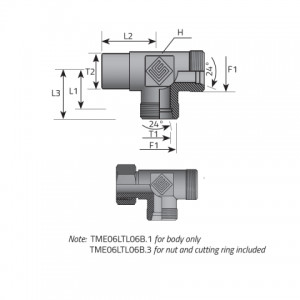

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm L1 mm L2 mm L3 mm T1 mm T2 mm Pressure Series
TME06LTL06B.1 M 12.0 X 1.50 M 12.0 X 1.50 12 12.00 26.00 19.00 6 6 315 bar
4568 psi
L
TME06STS06B.1 M 14.0 X 1.50 M 14.0 X 1.50 12 16.00 27.00 23.00 6 6 630 bar
9137 psi
S
TME08LTL08B.1 M 14.0 X 1.50 M 14.0 X 1.50 12 14.00 27.50 21.00 8 8 315 bar
4568 psi
L
TME08STS08B.1 M 16.0 X 1.50 M 16.0 X 1.50 14 17.00 27.50 24.00 8 8 630 bar
9137 psi
S
TME10LTL10B.1 M 16.0 X 1.50 M 16.0 X 1.50 14 15.00 29.00 22.00 10 10 315 bar
4568 psi
L
TME10STS10B.1 M 18.0 X 1.50 M 18.0 X 1.50 17 17.50 30.00 25.00 10 10 630 bar
9137 psi
S
TME12LTL12B.1 M 18.0 X 1.50 M 18.0 X 1.50 17 17.00 29.50 24.00 12 12 315 bar
4568 psi
L
TME12STS12B.1 M 20.0 X 1.50 M 20.0 X 1.50 17 21.50 31.00 29.00 12 12 630 bar
9137 psi
S
TME14STS14B.1 M 22.0 X 1.50 M 22.0 X 1.50 19 22.00 35.00 30.00 14 14 630 bar
9137 psi
S
TME15LTL15B.1 M 22.0 X 1.50 M 22.0 X 1.50 19 21.00 32.50 28.00 15 15 315 bar
4568 psi
L
TME16STS16B.1 M 24.0 X 1.50 M 24.0 X 1.50 24 24.50 36.50 33.00 16 16 400 bar
5801 psi
S
TME18LTL18B.1 M 26.0 X 1.50 M 26.0 X 1.50 24 23.50 35.50 31.00 18 18 315 bar
4568 psi
L
TME20STS20B.1 M 30.0 X 2.00 M 30.0 X 2.00 27 26.50 44.50 37.00 20 20 400 bar
5801 psi
S
TME22LTL22B.1 M 30.0 X 2.00 M 30.0 X 2.00 27 27.50 38.50 35.00 22 22 160 bar
2320 psi
L
TME25STS25B.1 M 36.0 X 2.00 M 36.0 X 2.00 36 30.00 50.00 42.00 25 25 400 bar
5801 psi
S
TME28LTL28B.1 M 36.0 X 2.00 M 36.0 X 2.00 36 30.50 41.50 38.00 28 28 160 bar
2320 psi
L
TME30STS30B.1 M 42.0 X 2.00 M 42.0 X 2.00 41 35.50 55.00 49.00 30 30 400 bar
5801 psi
S
TME35LTL35B.1 M 45.0 X 2.00 M 45.0 X 2.00 41 34.50 51.00 45.00 35 35 160 bar
2320 psi
L
TME38STS38B.1 M 52.0 X 2.00 M 52.0 X 2.00 50 41.00 63.00 57.00 38 38 315 bar
4568 psi
S
TME42LTL42B.1 M 52.0 X 2.00 M 52.0 X 2.00 50 40.00 56.00 51.00 42 42 160 bar
2320 psi
L
