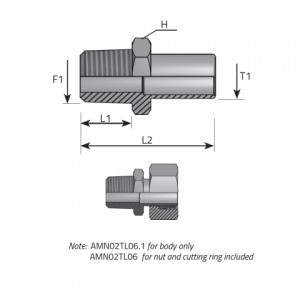

| Code | F1 inch | H mm | L1 mm | L2 mm | T1 mm | Pressure | Series |
|---|---|---|---|---|---|---|---|
| AMN02TL06.1 | 1/8 | 12 | 10.00 | 33.00 | 6 | 315 bar 4568 psi |
L |
| AMN04TL08.1 | 1/4 | 14 | 15.00 | 39.00 | 8 | 315 bar 4568 psi |
L |
| AMN04TL10.1 | 1/4 | 14 | 15.00 | 40.00 | 10 | 315 bar 4568 psi |
L |
| AMN04TS06.1 | 1/4 | 14 | 15.00 | 40.00 | 6 | 630 bar 9137 psi |
S |
| AMN04TS08.1 | 1/4 | 14 | 15.00 | 40.00 | 8 | 630 bar 9137 psi |
S |
| AMN06TL12.1 | 3/8 | 19 | 15.00 | 44.50 | 12 | 315 bar 4568 psi |
L |
| AMN06TS10.1 | 3/8 | 19 | 15.00 | 44.00 | 10 | 630 bar 9137 psi |
S |
| AMN06TS12.1 | 3/8 | 19 | 15.00 | 44.50 | 12 | 630 bar 9137 psi |
S |
| AMN08TL15.1 | 1/2 | 22 | 20.00 | 48.00 | 15 | 315 bar 4568 psi |
L |
| AMN08TL18.1 | 1/2 | 22 | 20.00 | 49.00 | 18 | 315 bar 4568 psi |
L |
| AMN08TS14.1 | 1/2 | 22 | 20.00 | 53.50 | 14 | 630 bar 9137 psi |
S |
| AMN08TS16.1 | 1/2 | 22 | 20.00 | 53.50 | 16 | 400 bar 5801 psi |
S |
| AMN12TL22.1 | 3/4 | 27 | 20.00 | 49.00 | 22 | 160 bar 2320 psi |
L |
| AMN12TS20.1 | 3/4 | 27 | 20.00 | 58.00 | 20 | 400 bar 5801 psi |
S |
| AMN16TL28.1 | 1 | 36 | 25.00 | 55.50 | 28 | 160 bar 2320 psi |
L |
| AMN16TS25.1 | 1 | 36 | 25.00 | 68.50 | 25 | 400 bar 5801 psi |
S |
| AMN20TL35.1 | 1 1/4 | 46 | 26.00 | 63.00 | 35 | 160 bar 2320 psi |
L |
| AMN20TS30.1 | 1 1/4 | 46 | 26.00 | 73.50 | 30 | 400 bar 5801 psi |
S |
| AMN24TL42.1 | 1 1/2 | 50 | 26.00 | 65.00 | 42 | 160 bar 2320 psi |
L |
| AMN24TS38.1 | 1 1/2 | 50 | 26.00 | 78.00 | 38 | 315 bar 4568 psi |
S |
