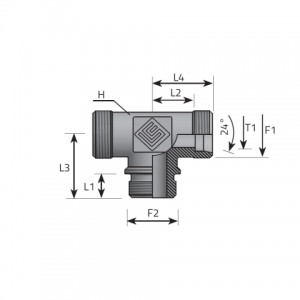

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Pressure | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TME20SMM27P.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 27 | 16.00 | 26.50 | 26.00 | 37.00 | 20 | 400 bar 5801 psi |
S |
| TME22LMM26P.1 | M 30.0 | X 2.00 | M 26.0 | X 1.50 | 27 | 16.00 | 27.50 | 26.00 | 35.00 | 22 | 160 bar 2320 psi |
L |
| TME25SMM33P.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 36 | 18.00 | 31.00 | 30.00 | 43.00 | 25 | 400 bar 5801 psi |
S |
| TME28LMM33P.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 36 | 18.00 | 30.50 | 30.00 | 38.00 | 28 | 160 bar 2320 psi |
L |
| TME30SMM42P.1 | M 42.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 20.00 | 35.50 | 34.00 | 68.50 | 30 | 250 bar 3626 psi |
S |
| TME35LMM42P.1 | M 45.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 20.00 | 34.50 | 34.00 | 65.50 | 35 | 160 bar 2320 psi |
L |
| TME38SMM48P.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 50 | 22.00 | 41.00 | 39.00 | 57.00 | 38 | 250 bar 3626 psi |
S |
| TME42LMM48P.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 50 | 22.00 | 40.00 | 39.00 | 51.00 | 42 | 160 bar 2320 psi |
L |
