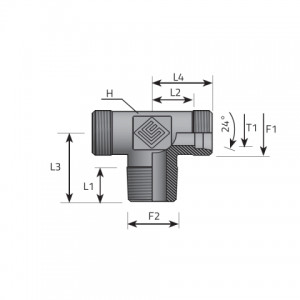

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Pressure | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TME06LMMK10P.1 | M 12.0 | X 1.50 | M 10.0 | X 1.00 | 12 | 8.00 | 12.00 | 20.00 | 19.00 | 6 | 315 bar 4568 psi |
L |
| TME06SMMK12P.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 12 | 12.00 | 16.00 | 26.00 | 23.00 | 6 | 630 bar 9137 psi |
S |
| TME08LMMK12P.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 12 | 12.00 | 14.00 | 26.00 | 21.00 | 8 | 315 bar 4568 psi |
L |
| TME08SMMK14P.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 12.00 | 17.00 | 27.00 | 24.00 | 8 | 630 bar 9137 psi |
S |
| TME10LMMK14P.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 12.00 | 15.00 | 27.00 | 22.00 | 10 | 315 bar 4568 psi |
L |
| TME10SMMK16P.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 17 | 12.00 | 17.50 | 28.00 | 25.00 | 10 | 630 bar 9137 psi |
S |
| TME12LMMK16P.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 17 | 12.00 | 17.00 | 28.00 | 24.00 | 12 | 315 bar 4568 psi |
L |
| TME12SMMK18P.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 17 | 12.00 | 21.50 | 31.00 | 29.00 | 12 | 630 bar 9137 psi |
S |
| TME14SMMK20P.1 | M 22.0 | X 1.50 | M 20.0 | X 1.50 | 19 | 14.00 | 22.00 | 32.00 | 30.00 | 14 | 630 bar 9137 psi |
S |
| TME15LMMK18P.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 14.00 | 21.00 | 34.00 | 28.00 | 15 | 315 bar 4568 psi |
L |
| TME16SMMK22P.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 24 | 14.00 | 24.50 | 32.00 | 33.00 | 16 | 400 bar 5801 psi |
S |
| TME18LMMK22P.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 24 | 14.00 | 23.50 | 36.00 | 31.00 | 18 | 315 bar 4568 psi |
L |
