![Adjustable Tee Adapter metric male – adjustable metric male. (TMM..MOMR..P)](https://hidronex.lv/images/uploads/fittings-and-adapters/tmmmomrp-300x300.png)

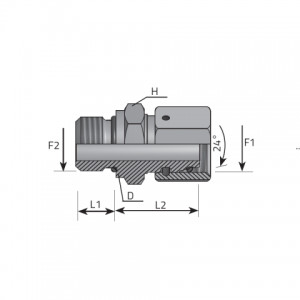

Code | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | D mm | T mm | Pressure | Series |
---|---|---|---|---|---|---|---|---|---|---|
AFE06LMU04 | M 12.0 | X 1.50 | 7/16 | 14 | 8.00 | 23.40 | 13.80 | 6 | 315 bar 4568 psi |
L |
AFE06SMU04 | M 14.0 | X 1.50 | 7/16 | 14 | 12.00 | 29.90 | 13.80 | 6 | 630 bar 9137 psi |
S |
AFE08LMU04 | M 14.0 | X 1.50 | 7/16 | 14 | 12.00 | 32.40 | 13.80 | 8 | 315 bar 4568 psi |
L |
AFE08SMU06 | M 16.0 | X 1.50 | 9/16 | 17 | 12.00 | 31.50 | 18.80 | 8 | 630 bar 9137 psi |
S |
AFE10LMU06 | M 16.0 | X 1.50 | 9/16 | 17 | 12.00 | 29.50 | 18.80 | 10 | 315 bar 4568 psi |
L |
AFE10SMU06 | M 18.0 | X 1.50 | 9/16 | 17 | 12.00 | 34.00 | 18.80 | 10 | 630 bar 9137 psi |
S |
AFE12LMU08 | M 18.0 | X 1.50 | 3/4 | 22 | 12.00 | 34.90 | 21.80 | 12 | 315 bar 4568 psi |
L |
AFE12SMU08 | M 20.0 | X 1.50 | 3/4 | 22 | 12.00 | 34.90 | 21.80 | 12 | 630 bar 9137 psi |
S |
AFE14SMU10 | M 22.0 | X 1.50 | 7/8 | 27 | 14.00 | 37.80 | 26.80 | 14 | 630 bar 9137 psi |
S |
AFE15LMU10 | M 22.0 | X 1.50 | 7/8 | 27 | 14.00 | 33.30 | 26.80 | 15 | 315 bar 4568 psi |
L |
AFE16SMU10 | M 24.0 | X 1.50 | 7/8 | 27 | 14.00 | 38.30 | 26.80 | 16 | 400 bar 5801 psi |
S |
AFE18LMU10 | M 26.0 | X 1.50 | 7/8 | 27 | 14.00 | 32.80 | 26.80 | 18 | 315 bar 4568 psi |
L |
AFE20SMU12 | M 30.0 | X 2.00 | 1 1/16 | 32 | 16.00 | 43.90 | 31.80 | 20 | 400 bar 5801 psi |
S |
AFE22LMU12 | M 30.0 | X 2.00 | 1 1/16 | 32 | 16.00 | 33.40 | 31.80 | 22 | 160 bar 2320 psi |
L |
AFE25SMU16 | M 36.0 | X 2.00 | 1 5/16 | 41 | 18.00 | 50.90 | 40.80 | 25 | 400 bar 5801 psi |
S |
AFE28LMU16 | M 36.0 | X 2.00 | 1 5/16 | 41 | 18.00 | 37.90 | 40.80 | 28 | 160 bar 2320 psi |
L |
AFE30SMU20 | M 42.0 | X 2.00 | 1 5/8 | 50 | 20.00 | 55.90 | 49.80 | 30 | 400 bar 5801 psi |
S |
AFE35LMU20 | M 45.0 | X 2.00 | 1 5/8 | 50 | 20.00 | 47.40 | 49.80 | 35 | 160 bar 2320 psi |
L |
AFE38SMU24 | M 52.0 | X 2.00 | 1 7/8 | 55 | 22.00 | 66.90 | 54.80 | 38 | 315 bar 4568 psi |
S |
AFE42LMU24 | M 52.0 | X 2.00 | 1 7/8 | 55 | 22.00 | 53.40 | 54.80 | 42 | 160 bar 2320 psi |
L |
