Nut DIN 3870. (DL-DS)

Brand : Vitillo

Vitillo Din Fittings Nut DIN 3870. (DL-DS)

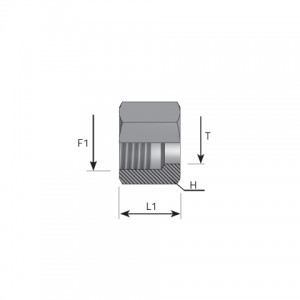

Code F1 mm F1 Pitch mm H mm L1 mm T mm Pressure Series
DL06 M 12.0 X 1.50 14 14.50 6 315 bar
4568 psi
L
DL08 M 14.0 X 1.50 17 14.50 8 315 bar
4568 psi
L
DL10 M 16.0 X 1.50 19 15.50 10 315 bar
4568 psi
L
DL12 M 18.0 X 1.50 22 15.50 12 315 bar
4568 psi
L
DL15 M 22.0 X 1.50 27 17.00 15 315 bar
4568 psi
L
DL18 M 26.0 X 1.50 32 18.00 18 315 bar
4568 psi
L
DL22 M 30.0 X 2.00 36 20.00 22 160 bar
2320 psi
L
DL28 M 36.0 X 2.00 41 21.00 28 160 bar
2320 psi
L
DL35 M 45.0 X 2.00 50 24.00 35 160 bar
2320 psi
L
DL42 M 52.0 X 2.00 60 24.00 42 160 bar
2320 psi
L
DS06 M 14.0 X 1.50 17 16.50 6 630 bar
9137 psi
S
DS08 M 16.0 X 1.50 19 16.50 8 630 bar
9137 psi
S
DS10 M 18.0 X 1.50 22 17.50 10 630 bar
9137 psi
S
DS12 M 20.0 X 1.50 24 17.50 12 630 bar
9137 psi
S
DS14 M 22.0 X 1.50 27 20.50 14 630 bar
9137 psi
S
DS16 M 24.0 X 1.50 30 20.50 16 400 bar
5801 psi
S
DS20 M 30.0 X 2.00 36 24.00 20 400 bar
5801 psi
S
DS25 M 36.0 X 2.00 46 27.00 25 400 bar
5801 psi
S
DS30 M 42.0 X 2.00 50 29.00 30 400 bar
5801 psi
S
DS38 M 52.0 X 2.00 60 32.50 38 315 bar
4568 psi
S
