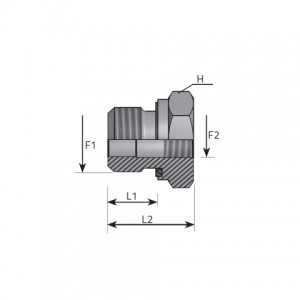

| Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| ARMG06ELFFG02 | 3/8 | 1/8 | 22 | 12.00 | 10.50 | 315 bar 4568 psi |
| ARMG08ELFFG02 | 1/2 | 1/8 | 27 | 14.00 | 10.00 | 315 bar 4568 psi |
| ARMG08ELFFG04 | 1/2 | 1/4 | 27 | 14.00 | 10.00 | 315 bar 4568 psi |
| ARMG12ELFFG04 | 3/4 | 1/4 | 32 | 16.00 | 10.00 | 315 bar 4568 psi |
| ARMG12ELFFG06 | 3/4 | 3/8 | 32 | 16.00 | 10.00 | 315 bar 4568 psi |
| ARMG16ELFFG04 | 1 | 1/4 | 41 | 18.00 | 11.00 | 315 bar 4568 psi |
| ARMG16ELFFG06 | 1 | 3/8 | 41 | 18.00 | 11.00 | 160 bar 2320 psi |
| ARMG16ELFFG08 | 1 | 1/2 | 41 | 18.00 | 11.00 | 160 bar 2320 psi |
| ARMG20ELFFG08 | 1 1/4 | 1/2 | 50 | 20.00 | 12.00 | 160 bar 2320 psi |
| ARMG20ELFFG12 | 1 1/4 | 3/4 | 50 | 20.00 | 12.00 | 160 bar 2320 psi |
| ARMG24ELFFG08 | 1 1/2 | 1/2 | 55 | 22.00 | 14.00 | 630 bar 9137 psi |
| ARMG24ELFFG12 | 1 1/2 | 3/4 | 55 | 22.00 | 14.00 | 630 bar 9137 psi |
| ARMG24ELFFG16 | 1 1/2 | 1 | 55 | 22.00 | 14.00 | 630 bar 9137 psi |
