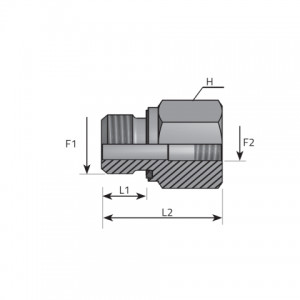

| Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| APMG02ELFFG04 | 1/8 | 1/4 | 19 | 8.00 | 23.00 | 630 bar 9137 psi |
| APMG02ELFFG06 | 1/8 | 3/8 | 24 | 8.00 | 24.00 | 630 bar 9137 psi |
| APMG04ELFFG02 | 1/4 | 1/8 | 19 | 12.00 | 16.00 | 630 bar 9137 psi |
| APMG04ELFFG06 | 1/4 | 3/8 | 24 | 12.00 | 24.00 | 630 bar 9137 psi |
| APMG04ELFFG08 | 1/4 | 1/2 | 30 | 12.00 | 28.00 | 630 bar 9137 psi |
| APMG04ELFFG12 | 1/4 | 3/4 | 36 | 12.00 | 31.00 | 630 bar 9137 psi |
| APMG06ELFFG04 | 3/8 | 1/4 | 22 | 12.00 | 24.00 | 630 bar 9137 psi |
| APMG06ELFFG08 | 3/8 | 1/2 | 30 | 12.00 | 29.00 | 630 bar 9137 psi |
| APMG06ELFFG12 | 3/8 | 3/4 | 36 | 12.00 | 32.00 | 400 bar 5801 psi |
| APMG08ELFFG06 | 1/2 | 3/8 | 27 | 14.00 | 22.00 | 630 bar 9137 psi |
| APMG08ELFFG12 | 1/2 | 3/4 | 36 | 14.00 | 32.00 | 400 bar 5801 psi |
| APMG08ELFFG16 | 1/2 | 1 | 41 | 14.00 | 35.00 | 400 bar 5801 psi |
| APMG08ELFFG20 | 1/2 | 1 1/4 | 55 | 14.00 | 39.00 | 400 bar 5801 psi |
| APMG12ELFFG08 | 3/4 | 1/2 | 32 | 16.00 | 26.00 | 400 bar 5801 psi |
| APMG12ELFFG16 | 3/4 | 1 | 41 | 16.00 | 35.00 | 400 bar 5801 psi |
| APMG12ELFFG20 | 3/4 | 1 1/4 | 55 | 16.00 | 39.00 | 400 bar 5801 psi |
| APMG12ELFFG24 | 3/4 | 1 1/2 | 60 | 16.00 | 41.00 | 315 bar 4568 psi |
| APMG16ELFFG12 | 1 | 3/4 | 41 | 18.00 | 29.00 | 400 bar 5801 psi |
| APMG16ELFFG20 | 1 | 1 1/4 | 55 | 18.00 | 39.00 | 400 bar 5801 psi |
| APMG16ELFFG24 | 1 | 1 1/2 | 60 | 18.00 | 41.00 | 315 bar 4568 psi |
| APMG20ELFFG16 | 1 1/4 | 1 | 50 | 20.00 | 31.00 | 400 bar 5801 psi |
| APMG20ELFFG24 | 1 1/4 | 1 1/2 | 60 | 20.00 | 40.00 | 315 bar 4568 psi |
| APMG24ELFFG20 | 1 1/2 | 1 1/4 | 50 | 22.00 | 46.00 | 315 bar 4568 psi |
