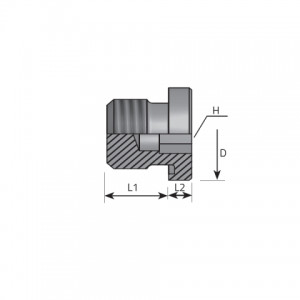

| Code | F1 mm | F1 Pitch mm | H mm | L1 mm | L2 mm | D mm | Pressure |
|---|---|---|---|---|---|---|---|
| ATMM10ELX | M 10.0 | X 1.00 | 5 | 8.00 | 4.00 | 14.00 | 400 bar 5801 psi |
| ATMM12ELX | M 12.0 | X 1.50 | 6 | 12.00 | 5.00 | 17.00 | 400 bar 5801 psi |
| ATMM14ELX | M 14.0 | X 1.50 | 6 | 12.00 | 5.00 | 19.00 | 400 bar 5801 psi |
| ATMM16ELX | M 16.0 | X 1.50 | 8 | 12.00 | 5.00 | 22.00 | 400 bar 5801 psi |
| ATMM18ELX | M 18.0 | X 1.50 | 8 | 12.00 | 5.00 | 24.00 | 400 bar 5801 psi |
| ATMM20ELX | M 20.0 | X 1.50 | 10 | 14.00 | 5.00 | 26.00 | 400 bar 5801 psi |
| ATMM22ELX | M 22.0 | X 1.50 | 10 | 14.00 | 5.00 | 27.00 | 400 bar 5801 psi |
| ATMM26ELX | M 26.0 | X 1.50 | 12 | 16.00 | 5.00 | 32.00 | 400 bar 5801 psi |
| ATMM27ELX | M 27.0 | X 2.00 | 12 | 16.00 | 5.00 | 32.00 | 400 bar 5801 psi |
| ATMM33ELX | M 33.0 | X 2.00 | 17 | 16.00 | 6.50 | 40.00 | 400 bar 5801 psi |
| ATMM42ELX | M 42.0 | X 2.00 | 22 | 16.00 | 6.50 | 50.00 | 250 bar 3626 psi |
| ATMM48ELX | M 48.0 | X 2.00 | 24 | 16.00 | 6.50 | 55.00 | 250 bar 3626 psi |
