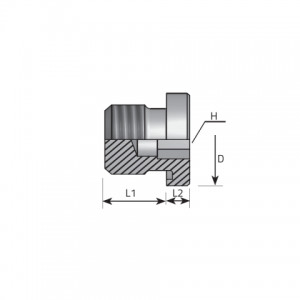

| Code | F1 inch | H mm | L1 mm | L2 mm | D mm | Pressure |
|---|---|---|---|---|---|---|
| ATMG02ELX | 1/8 | 5 | 8.00 | 4.00 | 14.00 | 400 bar 5801 psi |
| ATMG04ELX | 1/4 | 6 | 12.00 | 5.00 | 19.00 | 400 bar 5801 psi |
| ATMG06ELX | 3/8 | 8 | 12.00 | 5.00 | 22.00 | 400 bar 5801 psi |
| ATMG08ELX | 1/2 | 10 | 14.00 | 5.00 | 27.00 | 400 bar 5801 psi |
| ATMG12ELX | 3/4 | 12 | 16.00 | 5.00 | 32.00 | 400 bar 5801 psi |
| ATMG16ELX | 1 | 17 | 16.00 | 6.50 | 40.00 | 400 bar 5801 psi |
| ATMG20ELX | 1 1/4 | 22 | 16.00 | 6.50 | 50.00 | 250 bar 3626 psi |
| ATMG24ELX | 1 1/2 | 27 | 16.00 | 6.50 | 55.00 | 250 bar 3626 psi |
