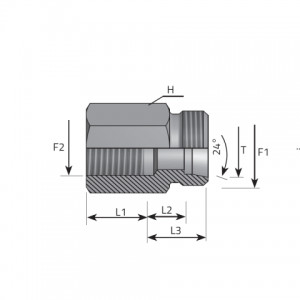

| Code | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | L3 mm | T1 mm | Pressure | Series |
|---|---|---|---|---|---|---|---|---|---|---|
| AME06LFFG02.1 | M 12.0 | X 1.50 | 1/8 | 14 | 10.00 | 9.00 | 16.00 | 6 | 315 bar 4568 psi |
L |
| AME06SFFG04.1 | M 14.0 | X 1.50 | 1/4 | 19 | 14.00 | 12.00 | 19.00 | 6 | 630 bar 9137 psi |
S |
| AME08LFFG04.1 | M 14.0 | X 1.50 | 1/4 | 19 | 14.00 | 10.00 | 17.00 | 8 | 315 bar 4568 psi |
L |
| AME08SFFG04.1 | M 16.0 | X 1.50 | 1/4 | 19 | 14.00 | 12.00 | 19.00 | 8 | 630 bar 9137 psi |
S |
| AME10LFFG04.1 | M 16.0 | X 1.50 | 1/4 | 19 | 14.00 | 11.00 | 18.00 | 10 | 315 bar 4568 psi |
L |
| AME10SFFG06.1 | M 18.0 | X 1.50 | 3/8 | 24 | 14.00 | 12.50 | 20.00 | 10 | 630 bar 9137 psi |
S |
| AME12LFFG06.1 | M 18.0 | X 1.50 | 3/8 | 24 | 14.00 | 12.00 | 19.00 | 12 | 315 bar 4568 psi |
L |
| AME12SFFG06.1 | M 20.0 | X 1.50 | 3/8 | 24 | 14.00 | 12.50 | 20.00 | 12 | 630 bar 9137 psi |
S |
| AME14SFFG08.1 | M 22.0 | X 1.50 | 1/2 | 30 | 17.00 | 15.00 | 23.00 | 14 | 630 bar 9137 psi |
S |
| AME15LFFG08.1 | M 22.0 | X 1.50 | 1/2 | 27 | 17.00 | 14.00 | 21.00 | 12 | 315 bar 4568 psi |
L |
| AME16SFFG08.1 | M 24.0 | X 1.50 | 1/2 | 30 | 17.00 | 14.50 | 23.00 | 16 | 400 bar 5801 psi |
S |
| AME18LFFG08.1 | M 26.0 | X 1.50 | 1/2 | 27 | 17.00 | 13.50 | 21.00 | 18 | 315 bar 4568 psi |
L |
| AME20SFFG12.1 | M 30.0 | X 2.00 | 3/4 | 36 | 19.00 | 15.50 | 26.00 | 20 | 400 bar 5801 psi |
S |
| AME22LFFG12.1 | M 30.0 | X 2.00 | 3/4 | 36 | 19.00 | 16.50 | 24.00 | 22 | 160 bar 2320 psi |
L |
| AME25SFFG16.1 | M 36.0 | X 2.00 | 1 | 41 | 21.50 | 15.50 | 27.50 | 25 | 400 bar 5801 psi |
S |
| AME28LFFG16.1 | M 36.0 | X 2.00 | 1 | 41 | 21.50 | 16.00 | 23.50 | 28 | 160 bar 2320 psi |
L |
| AME30SFFG20.1 | M 42.0 | X 2.00 | 1 1/4 | 55 | 23.50 | 19.00 | 32.50 | 30 | 400 bar 5801 psi |
S |
| AME35LFFG20.1 | M 45.0 | X 2.00 | 1 1/4 | 55 | 23.50 | 18.00 | 28.50 | 35 | 160 bar 2320 psi |
L |
| AME38SFFG24.1 | M 52.0 | X 2.00 | 1 1/2 | 60 | 25.50 | 18.50 | 34.50 | 38 | 315 bar 4568 psi |
S |
| AME42LFFG24.1 | M 52.0 | X 2.00 | 1 1/2 | 60 | 25.50 | 17.50 | 28.50 | 42 | 160 bar 2320 psi |
L |
