Equal elbow. (LME..LS)

Brand : Vitillo

Vitillo Din Fittings Equal elbow. (LME..LS)

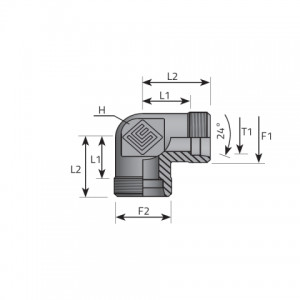

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm L1 mm L2 mm T1 mm Pressure Series
LME06L.1 M 12.0 X 1.50 M 12.0 X 1.50 12 12.00 19.00 6 315 bar
4568 psi
L
LME06S.1 M 14.0 X 1.50 M 14.0 X 1.50 12 16.00 23.00 6 630 bar
9137 psi
S
LME08L.1 M 14.0 X 1.50 M 14.0 X 1.50 12 14.00 21.00 8 315 bar
4568 psi
L
LME08S.1 M 16.0 X 1.50 M 16.0 X 1.50 14 17.00 24.00 8 630 bar
9137 psi
S
LME10L.1 M 16.0 X 1.50 M 16.0 X 1.50 14 15.00 22.00 10 315 bar
4568 psi
L
LME10S.1 M 18.0 X 1.50 M 18.0 X 1.50 17 17.50 25.00 10 630 bar
9137 psi
S
LME12L.1 M 18.0 X 1.50 M 18.0 X 1.50 17 17.00 24.00 12 315 bar
4568 psi
L
LME12S.1 M 20.0 X 1.50 M 20.0 X 1.50 17 21.50 29.00 12 630 bar
9137 psi
S
LME14S.1 M 22.0 X 1.50 M 22.0 X 1.50 19 22.00 30.00 14 630 bar
9137 psi
S
LME15L.1 M 22.0 X 1.50 M 22.0 X 1.50 19 21.00 28.00 15 315 bar
4568 psi
L
LME16S.1 M 24.0 X 1.50 M 24.0 X 1.50 24 24.50 33.00 16 400 bar
5801 psi
S
LME18L.1 M 26.0 X 1.50 M 26.0 X 1.50 24 23.50 31.00 18 315 bar
4568 psi
L
LME20S.1 M 30.0 X 2.00 M 30.0 X 2.00 27 26.50 37.00 20 400 bar
5801 psi
S
LME22L.1 M 30.0 X 2.00 M 30.0 X 2.00 27 27.50 35.00 22 160 bar
2320 psi
L
LME25S.1 M 36.0 X 2.00 M 36.0 X 2.00 36 30.00 42.00 25 400 bar
5801 psi
S
LME28L.1 M 36.0 X 2.00 M 36.0 X 2.00 36 30.50 38.00 28 160 bar
2320 psi
L
LME30S.1 M 42.0 X 2.00 M 42.0 X 2.00 41 35.50 49.00 30 400 bar
5801 psi
S
LME35L.1 M 45.0 X 2.00 M 45.0 X 2.00 41 34.50 45.00 35 160 bar
2320 psi
L
LME38S.1 M 52.0 X 2.00 M 52.0 X 2.00 50 41.00 57.00 38 315 bar
4568 psi
S
LME42L.1 M 52.0 X 2.00 M 52.0 X 2.00 50 40.00 51.00 42 160 bar
2320 psi
L
