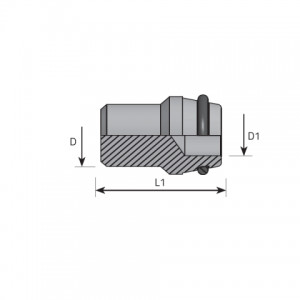

| Code | L1 mm | D mm | D1 mm | Pressure | Series |
|---|---|---|---|---|---|
| ATFGE06L | 18.50 | 6.00 | 6.00 | 315 bar 4568 psi |
L |
| ATFGE06S | 18.50 | 6.00 | 6.00 | 630 bar 9137 psi |
S |
| ATFGE08L | 18.50 | 8.00 | 8.00 | 315 bar 4568 psi |
L |
| ATFGE08S | 18.50 | 8.00 | 8.00 | 630 bar 9137 psi |
S |
| ATFGE10L | 20.00 | 10.00 | 10.00 | 315 bar 4568 psi |
L |
| ATFGE10S | 20.00 | 10.00 | 10.00 | 630 bar 9137 psi |
S |
| ATFGE12L | 20.50 | 12.00 | 12.00 | 315 bar 4568 psi |
L |
| ATFGE12S | 20.50 | 12.00 | 12.00 | 630 bar 9137 psi |
S |
| ATFGE14S | 22.50 | 14.00 | 14.00 | 630 bar 9137 psi |
S |
| ATFGE15L | 20.50 | 15.00 | 15.00 | 315 bar 4568 psi |
L |
| ATFGE16S | 23.50 | 16.00 | 16.00 | 400 bar 5801 psi |
S |
| ATFGE18L | 22.50 | 18.00 | 18.00 | 315 bar 4568 psi |
L |
| ATFGE20S | 28.50 | 20.00 | 20.00 | 400 bar 5801 psi |
S |
| ATFGE22L | 25.00 | 22.00 | 22.00 | 160 bar 2320 psi |
L |
| ATFGE25S | 29.00 | 25.00 | 25.00 | 400 bar 5801 psi |
S |
| ATFGE28L | 25.50 | 28.00 | 28.00 | 160 bar 2320 psi |
L |
| ATFGE30S | 30.50 | 30.00 | 30.00 | 400 bar 5801 psi |
S |
| ATFGE35L | 30.00 | 35.00 | 35.00 | 160 bar 2320 psi |
L |
| ATFGE38S | 33.00 | 38.00 | 38.00 | 315 bar 4568 psi |
S |
| ATFGE42L | 30.00 | 42.00 | 42.00 | 160 bar 2320 psi |
L |
