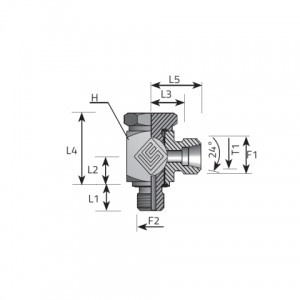

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | L4 mm | L5 mm | T1 mm | Pressure | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LME06LBFM10.1 | M 12.0 | X 1.50 | M 10.0 | X 1.00 | 17 | 8.00 | 10.50 | 12.00 | 18.50 | 19.00 | 6 | 315 bar 4568 psi |
L |
| LME06SBFM12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 22 | 12.00 | 14.00 | 16.50 | 25.00 | 23.50 | 6 | 630 bar 9137 psi |
S |
| LME08LBFM12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 22 | 12.00 | 14.00 | 14.50 | 25.00 | 21.50 | 8 | 315 bar 4568 psi |
L |
| LME08SBFM14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 22 | 12.00 | 14.00 | 16.50 | 25.00 | 23.50 | 8 | 630 bar 9137 psi |
S |
| LME10LBFM14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 22 | 12.00 | 14.00 | 15.50 | 25.00 | 22.50 | 10 | 315 bar 4568 psi |
L |
| LME10SBFM16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 27 | 12.00 | 16.50 | 18.50 | 30.00 | 26.00 | 10 | 630 bar 9137 psi |
S |
| LME12LBFM16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 27 | 12.00 | 16.50 | 18.00 | 30.00 | 25.00 | 12 | 315 bar 4568 psi |
L |
| LME12SBFM18.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 32 | 12.00 | 18.50 | 21.50 | 33.50 | 29.00 | 12 | 630 bar 9137 psi |
S |
| LME14SBFM20.1 | M 22.0 | X 1.50 | M 20.0 | X 1.50 | 32 | 14.00 | 20.00 | 23.00 | 36.00 | 31.00 | 14 | 630 bar 9137 psi |
S |
| LME15LBFM18.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 32 | 12.00 | 18.50 | 22.00 | 33.50 | 29.00 | 15 | 315 bar 4568 psi |
L |
| LME16SBFM22.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 32 | 14.00 | 21.50 | 22.50 | 37.50 | 31.00 | 16 | 400 bar 5801 psi |
S |
| LME18LBFM22.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 32 | 14.00 | 21.50 | 21.50 | 37.50 | 29.00 | 18 | 315 bar 4568 psi |
L |
| LME20SBFM27.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 41 | 16.00 | 24.00 | 25.50 | 44.00 | 36.00 | 20 | 400 bar 5801 psi |
S |
| LME22LBFM26.1 | M 30.0 | X 2.00 | M 26.0 | X 1.50 | 41 | 16.00 | 24.00 | 26.50 | 44.00 | 34.00 | 22 | 160 bar 2320 psi |
L |
| LME25SBFM33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 50 | 18.00 | 30.50 | 31.50 | 55.50 | 43.50 | 25 | 400 bar 5801 psi |
S |
| LME28LBFM33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 50 | 18.00 | 30.50 | 31.00 | 55.50 | 38.50 | 28 | 160 bar 2320 psi |
L |
| LME30SBFM42.1 | M 42.0 | X 2.00 | M 42.0 | X 2.00 | 60 | 20.00 | 35.50 | 36.00 | 65.50 | 49.50 | 30 | 400 bar 5801 psi |
S |
| LME35LBFM42.1 | M 45.0 | X 2.00 | M 42.0 | X 2.00 | 60 | 20.00 | 35.50 | 35.00 | 65.50 | 45.50 | 35 | 160 bar 2320 psi |
L |
| LME38SBFM48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 70 | 22.00 | 40.50 | 40.50 | 75.50 | 56.50 | 38 | 315 bar 4568 psi |
S |
| LME42LBFM48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 70 | 22.00 | 40.50 | 39.50 | 75.50 | 50.50 | 42 | 160 bar 2320 psi |
L |
