Angular rotary fitting with O-ring seal. (LME..LSFE..LS)

Brand : Vitillo

Vitillo Din Fittings Angular rotary fitting with O-ring seal. (LME..LSFE..LS)

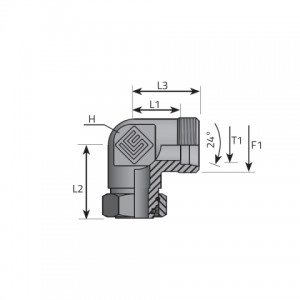

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm L1 mm L2 mm L3 mm T1 mm Pressure Series
LME06LFE06L.1 M 12.0 X 1.50 M 12.0 X 1.50 12 12.00 26.00 19.00 6 315 bar
4568 psi
L
LME06SFE06S.1 M 14.0 X 1.50 M 14.0 X 1.50 12 16.00 27.00 19.00 6 630 bar
9137 psi
S
LME08LFE08L.1 M 14.0 X 1.50 M 14.0 X 1.50 12 14.00 27.50 19.00 8 315 bar
4568 psi
L
LME08SFE08S.1 M 16.0 X 1.50 M 16.0 X 1.50 14 17.00 27.50 21.00 8 630 bar
9137 psi
S
LME10LFE10L.1 M 16.0 X 1.50 M 16.0 X 1.50 14 15.00 29.00 21.00 10 315 bar
4568 psi
L
LME10SFE10S.1 M 18.0 X 1.50 M 18.0 X 1.50 17 17.50 30.00 24.50 10 630 bar
9137 psi
S
LME12LFE12L.1 M 18.0 X 1.50 M 18.0 X 1.50 17 17.00 29.50 24.00 12 315 bar
4568 psi
L
LME12SFE12S.1 M 20.0 X 1.50 M 20.0 X 1.50 17 21.50 31.00 24.50 12 630 bar
9137 psi
S
LME14SFE14S.1 M 22.0 X 1.50 M 22.0 X 1.50 19 22.00 35.00 27.00 14 630 bar
9137 psi
S
LME15LFE15L.1 M 22.0 X 1.50 M 22.0 X 1.50 19 21.00 32.50 26.00 15 315 bar
4568 psi
L
LME16SFE16S.1 M 24.0 X 1.50 M 24.0 X 1.50 24 24.50 36.50 32.50 16 400 bar
5801 psi
S
LME18LFE18L.1 M 26.0 X 1.50 M 26.0 X 1.50 24 23.50 35.50 31.50 18 315 bar
4568 psi
L
LME20SFE20S.1 M 30.0 X 2.00 M 30.0 X 2.00 27 26.50 44.50 37.50 20 400 bar
5801 psi
S
LME22LFE22L.1 M 30.0 X 2.00 M 30.0 X 2.00 27 27.50 38.50 34.50 22 160 bar
2320 psi
L
LME25SFE25S.1 M 36.0 X 2.00 M 36.0 X 2.00 36 30.00 50.00 48.00 25 400 bar
5801 psi
S
LME28LFE28L.1 M 36.0 X 2.00 M 36.0 X 2.00 36 30.50 41.50 43.50 28 160 bar
2320 psi
L
LME30SFE30S.1 M 42.0 X 2.00 M 42.0 X 2.00 41 35.50 55.00 54.50 30 400 bar
5801 psi
S
LME35LFE35L.1 M 45.0 X 2.00 M 45.0 X 2.00 41 34.50 51.00 51.50 35 160 bar
2320 psi
L
LME38SFE38S.1 M 52.0 X 2.00 M 52.0 X 2.00 50 41.00 63.00 66.00 38 315 bar
4568 psi
S
LME42LFE42L.1 M 52.0 X 2.00 M 52.0 X 2.00 50 40.00 56.00 61.00 42 160 bar
2320 psi
L
