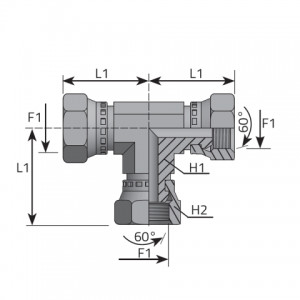

| Code | F1 inch | H1 mm | H2 mm | L1 mm | Pressure |
|---|---|---|---|---|---|
| TFGG02 | 1/8 | 14 | 15 | 28.50 | 350 bar 5075 psi |
| TFGG04 | 1/4 | 14 | 19 | 30.50 | 350 bar 5075 psi |
| TFGG06 | 3/8 | 19 | 22 | 36.00 | 350 bar 5075 psi |
| TFGG08 | 1/2 | 22 | 27 | 39.00 | 315 bar 4568 psi |
| TFGG12 | 3/4 | 27 | 32 | 45.00 | 250 bar 3625 psi |
| TFGG16 | 1 | 33 | 41 | 50.00 | 200 bar 2900 psi |
| TFGG20 | 1 1/4 | 41 | 50 | 64.00 | 160 bar 2320 psi |
