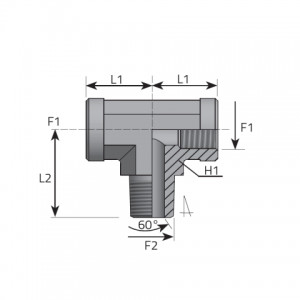

| Code | F1 inch | F2 inch | H1 mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| TFFG02MGK02P | 1/8 | 1/8 | 14 | 17.00 | 20.50 | 350 bar 5075 psi |
| TFFG04MGK04P | 1/4 | 1/4 | 19 | 22.50 | 28.00 | 350 bar 5075 psi |
| TFFG06MGK06P | 3/8 | 3/8 | 22 | 26.00 | 31.00 | 350 bar 5075 psi |
| TFFG08MGK08P | 1/2 | 1/2 | 27 | 31.00 | 37.50 | 315 bar 4568 psi |
| TFFG12MGK12P | 3/4 | 3/4 | 33 | 34.50 | 45.00 | 250 bar 3625 psi |
| TFFG16MGK16P | 1 | 1 | 41 | 43.00 | 55.00 | 200 bar 2900 psi |
