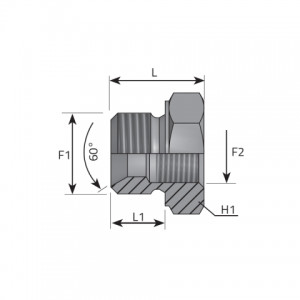

| Code | F1 inch | F2 inch | H1 mm | L mm | L1 mm | Pressure |
|---|---|---|---|---|---|---|
| ARMFC0402 | 1/4 | 1/8 | 19 | 18.00 | 11.00 | 350 bar 5075 psi |
| ARMFC0602 | 3/8 | 1/8 | 22 | 21.50 | 12.50 | 350 bar 5075 psi |
| ARMFC0604 | 3/8 | 1/4 | 22 | 21.50 | 12.50 | 350 bar 5075 psi |
| ARMFC0802 | 1/2 | 1/8 | 27 | 24.00 | 14.00 | 315 bar 4568 psi |
| ARMFC0804 | 1/2 | 1/4 | 27 | 24.00 | 14.00 | 315 bar 4568 psi |
| ARMFC0806 | 1/2 | 3/8 | 27 | 24.00 | 14.00 | 315 bar 4568 psi |
| ARMFC1204 | 3/4 | 1/4 | 32 | 27.00 | 16.00 | 250 bar 3625 psi |
| ARMFC1206 | 3/4 | 3/8 | 32 | 27.00 | 16.00 | 250 bar 3625 psi |
| ARMFC1208 | 3/4 | 1/2 | 32 | 27.00 | 16.00 | 250 bar 3625 psi |
| ARMFC1604 | 1 | 1/4 | 41 | 32.00 | 18.00 | 200 bar 2900 psi |
| ARMFC1606 | 1 | 3/8 | 41 | 32.50 | 18.00 | 200 bar 2900 psi |
| ARMFC1608 | 1 | 1/2 | 41 | 31.50 | 18.00 | 200 bar 2900 psi |
| ARMFC1612 | 1 | 3/4 | 41 | 32.00 | 18.00 | 200 bar 2900 psi |
| ARMFC2008 | 1 1/4 | 1/2 | 50 | 34.00 | 21.00 | 160 bar 2320 psi |
| ARMFC2012 | 1 1/4 | 3/4 | 50 | 34.00 | 21.00 | 160 bar 2320 psi |
| ARMFC2016 | 1 1/4 | 1 | 50 | 35.50 | 21.00 | 160 bar 2320 psi |
| ARMFC2408 | 1 1/2 | 1/2 | 55 | 36.00 | 21.00 | 125 bar 1813 psi |
| ARMFC2412 | 1 1/2 | 3/4 | 55 | 36.00 | 21.00 | 125 bar 1813 psi |
| ARMFC2416 | 1 1/2 | 1 | 55 | 36.00 | 21.00 | 125 bar 1813 psi |
| ARMFC2420 | 1 1/2 | 1 1/4 | 55 | 36.00 | 21.00 | 125 bar 1813 psi |
| ARMFC3216 | 2 | 1 | 70 | 42.50 | 25.00 | 80 bar 1160 psi |
| ARMFC3220 | 2 | 1 1/4 | 70 | 42.50 | 25.00 | 80 bar 1160 psi |
| ARMFC3224 | 2 | 1 1/2 | 70 | 42.50 | 25.00 | 80 bar 1160 psi |
