Reducing metric male Adapter. (ARMM)

Brand : Vitillo

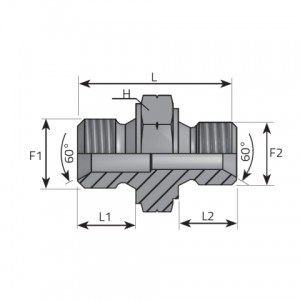

Code	F1 mm	F1 Pitch mm	F2 mm	F2 Pitch mm	H mm	L mm	L1 mm	L2 mm	Pressure
ARMM1210	M 12.0	X 1.50	M 10.0	X 1.00	17	28.50	11.00	9.50	350 bar 5075 psi
ARMM1410	M 14.0	X 1.50	M 10.0	X 1.00	19	27.50	11.00	9.50	350 bar 5075 psi
ARMM1412	M 14.0	X 1.50	M 12.0	X 1.50	19	30.00	11.00	11.00	350 bar 5075 psi
ARMM1612	M 16.0	X 1.50	M 12.0	X 1.50	22	31.50	12.50	11.50	350 bar 5075 psi
ARMM1614	M 16.0	X 1.50	M 14.0	X 1.50	22	31.50	12.50	11.00	350 bar 5075 psi
ARMM1814	M 18.0	X 1.50	M 14.0	X 1.50	24	35.00	14.00	11.00	315 bar 4568 psi
ARMM1816	M 18.0	X 1.50	M 16.0	X 1.50	24	36.50	14.00	12.50	315 bar 4568 psi
ARMM2014	M 20.0	X 1.50	M 14.0	X 1.50	24	36.50	14.00	12.50	315 bar 4568 psi
ARMM2016	M 20.0	X 1.50	M 16.0	X 1.50	27	36.50	14.00	12.50	315 bar 4568 psi
ARMM2018	M 20.0	X 1.50	M 18.0	X 1.50	27	38.00	14.00	14.00	315 bar 4568 psi
ARMM2214	M 22.0	X 1.50	M 14.0	X 1.50	27	36.50	14.00	12.50	315 bar 4568 psi
ARMM2216	M 22.0	X 1.50	M 16.0	X 1.50	27	36.50	14.00	12.50	315 bar 4568 psi
ARMM2218	M 22.0	X 1.50	M 18.0	X 1.50	27	38.00	14.00	14.00	315 bar 4568 psi
ARMM2220	M 22.0	X 1.50	M 20.0	X 1.50	27	38.00	14.00	16.00	315 bar 4568 psi
ARMM2418	M 24.0	X 1.50	M 18.0	X 1.50	30	40.00	16.00	14.00	315 bar 4568 psi
ARMM2422	M 24.0	X 1.50	M 22.0	X 1.50	30	40.00	16.00	15.00	315 bar 4568 psi
ARMM2622	M 26.0	X 1.50	M 22.0	X 1.50	32	41.00	16.00	15.00	250 bar 3625 psi
ARMM2624	M 26.0	X 1.50	M 24.0	X 1.50	32	45.00	18.00	18.00	250 bar 3625 psi
ARMM3022	M 30.0	X 1.50	M 22.0	X 1.50	38	45.00	18.00	15.00	200 bar 2900 psi
ARMM3026	M 30.0	X 1.50	M 26.0	X 1.50	38	46.00	18.00	16.00	200 bar 2900 psi
