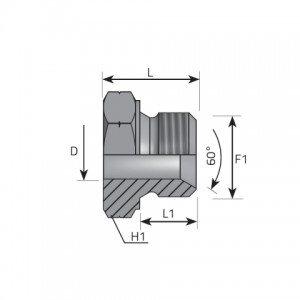

| Code | F1 mm | F1 Pitch mm | H1 mm | L mm | L1 mm | D mm | Pressure |
|---|---|---|---|---|---|---|---|
| AMNSM10 | M 10.0 | X 1.00 | 14 | 15.50 | 9.50 | 4.00 | 350 bar 5075 psi |
| AMNSM12 | M 12.0 | X 1.50 | 17 | 18.00 | 11.00 | 5.00 | 350 bar 5075 psi |
| AMNSM14 | M 14.0 | X 1.50 | 19 | 18.00 | 11.00 | 7.00 | 350 bar 5075 psi |
| AMNSM16 | M 16.0 | X 1.50 | 22 | 20.50 | 12.50 | 9.50 | 350 bar 5075 psi |
| AMNSM18 | M 18.0 | X 1.50 | 24 | 22.00 | 14.00 | 9.50 | 315 bar 4568 psi |
| AMNSM20 | M 20.0 | X 1.50 | 27 | 24.00 | 14.00 | 12.00 | 315 bar 4568 psi |
| AMNSM22 | M 22.0 | X 1.50 | 27 | 24.00 | 14.00 | 12.00 | 315 bar 4568 psi |
| AMNSM24 | M 24.0 | X 1.50 | 30 | 25.00 | 16.00 | 14.00 | 315 bar 4568 psi |
| AMNSM26 | M 26.0 | X 1.50 | 32 | 26.00 | 16.00 | 17.00 | 250 bar 3625 psi |
