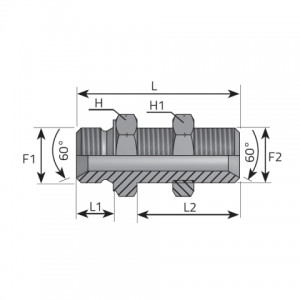

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | H1 mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|
| ANMM1414P | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 19 | 48.00 | 11.00 | 30.00 | 350 bar 5075 psi |
| ANMM1616P | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 22 | 55.50 | 12.50 | 35.00 | 350 bar 5075 psi |
| ANMM1818P | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 24 | 56.00 | 14.00 | 32.00 | 315 bar 4568 psi |
| ANMM2222P | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 27 | 60.00 | 15.00 | 34.00 | 315 bar 4568 psi |
