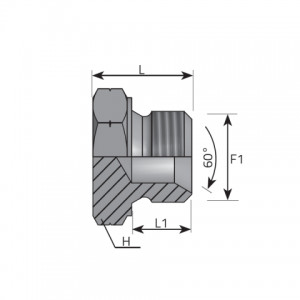

| Code | F1 mm | F1 Pitch mm | H mm | L mm | L1 mm | Pressure |
|---|---|---|---|---|---|---|
| ATMM08 | M 8.0 | X 1.00 | 9 | 18.00 | 12.50 | 350 bar 5075 psi |
| ATMM10 | M 10.0 | X 1.00 | 14 | 15.50 | 9.50 | 350 bar 5075 psi |
| ATMM10x1.5 | M 10.0 | X 1.50 | 14 | 15.50 | 9.50 | 350 bar 5075 psi |
| ATMM12 | M 12.0 | X 1.50 | 17 | 18.00 | 11.00 | 350 bar 5075 psi |
| ATMM14 | M 14.0 | X 1.50 | 19 | 18.00 | 11.00 | 350 bar 5075 psi |
| ATMM16 | M 16.0 | X 1.50 | 22 | 20.50 | 12.50 | 350 bar 5075 psi |
| ATMM18 | M 18.0 | X 1.50 | 24 | 22.00 | 14.00 | 315 bar 4568 psi |
| ATMM20 | M 20.0 | X 1.50 | 27 | 24.00 | 14.00 | 315 bar 4568 psi |
| ATMM22 | M 22.0 | X 1.50 | 27 | 24.00 | 14.00 | 315 bar 4568 psi |
| ATMM24 | M 24.0 | X 1.50 | 30 | 25.00 | 16.00 | 315 bar 4568 psi |
| ATMM26 | M 26.0 | X 1.50 | 32 | 26.00 | 16.00 | 250 bar 3625 psi |
| ATMM28 | M 28.0 | X 1.50 | 34 | 26.00 | 16.00 | 250 bar 3625 psi |
| ATMM30 | M 30.0 | X 1.50 | 38 | 29.00 | 18.00 | 200 bar 2900 psi |
