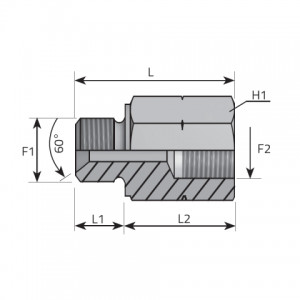

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H1 mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| APMFM1027 | M 10.0 | X 1.00 | M 10.0 | X 1.00 | 14 | 27.00 | 9.50 | 17.50 | 350 bar 5075 psi |
| APMFM1040.5 | M 10.0 | X 1.00 | M 10.0 | X 1.00 | 14 | 40.50 | 9.50 | 31.00 | 350 bar 5075 psi |
| APMFM1433 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 33.00 | 11.00 | 22.00 | 350 bar 5075 psi |
| APMFM1635 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 35.00 | 12.50 | 22.50 | 350 bar 5075 psi |
| APMFM1840 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 40.00 | 14.00 | 26.00 | 315 bar 4568 psi |
| APMFM1845 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 45.00 | 14.00 | 31.00 | 315 bar 4568 psi |
| APMFM1850 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 50.00 | 14.00 | 36.00 | 315 bar 4568 psi |
| APMFM2045 | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 45.00 | 14.00 | 31.00 | 315 bar 4568 psi |
| APMFM2060 | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 60.00 | 14.00 | 46.00 | 315 bar 4568 psi |
| APMFM2240 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 40.00 | 14.00 | 26.00 | 315 bar 4568 psi |
| APMFM2260 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 60.00 | 14.00 | 46.00 | 315 bar 4568 psi |
