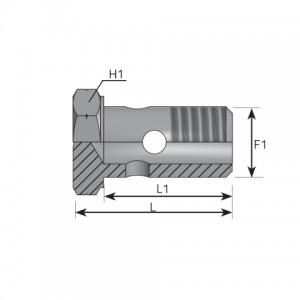

| Code | F1 mm | F1 Pitch mm | H1 mm | L mm | L1 mm | Pressure |
|---|---|---|---|---|---|---|
| ABFM06 | M 6.0 | X 1.00 | 10 | 21.00 | 16.00 | 350 bar 5075 psi |
| ABFM08 | M 8.0 | X 1.00 | 12 | 21.00 | 16.00 | 350 bar 5075 psi |
| ABFM08X1.25 | M 8.0 | X 1.25 | 12 | 21.00 | 16.00 | 350 bar 5075 psi |
| ABFM08X1.5 | M 8.0 | X 1.50 | 12 | 21.00 | 16.00 | 350 bar 5075 psi |
| ABFM10 | M 10.0 | X 1.00 | 14 | 24.50 | 19.50 | 350 bar 5075 psi |
| ABFM10X1.25 | M 10.0 | X 1.25 | 14 | 24.50 | 19.50 | 350 bar 5075 psi |
| ABFM10X1.5 | M 10.0 | X 1.50 | 14 | 24.50 | 19.50 | 350 bar 5075 psi |
| ABFM12 | M 12.0 | X 1.50 | 17 | 31.00 | 24.50 | 350 bar 5075 psi |
| ABFM12X1 | M 12.0 | X 1.00 | 17 | 31.00 | 24.50 | 350 bar 5075 psi |
| ABFM12X1.25 | M 12.0 | X 1.25 | 17 | 31.00 | 24.50 | 350 bar 5075 psi |
| ABFM14 | M 14.0 | X 1.50 | 19 | 33.00 | 27.00 | 350 bar 5075 psi |
| ABFM16 | M 16.0 | X 1.50 | 22 | 40.00 | 32.00 | 350 bar 5075 psi |
| ABFM18 | M 18.0 | X 1.50 | 24 | 44.00 | 36.00 | 315 bar 4568 psi |
| ABFM20 | M 20.0 | X 1.50 | 27 | 47.00 | 38.00 | 315 bar 4568 psi |
| ABFM22 | M 22.0 | X 1.50 | 27 | 47.00 | 38.00 | 315 bar 4568 psi |
| ABFM24 | M 24.0 | X 1.50 | 30 | 56.60 | 46.50 | 315 bar 4568 psi |
| ABFM24X2 | M 24.0 | X 2.00 | 30 | 56.50 | 46.50 | 315 bar 4568 psi |
| ABFM26 | M 26.0 | X 1.50 | 32 | 56.00 | 46.50 | 250 bar 3625 psi |
| ABFM30 | M 30.0 | X 1.50 | 38 | 69.00 | 58.00 | 200 bar 2900 psi |
