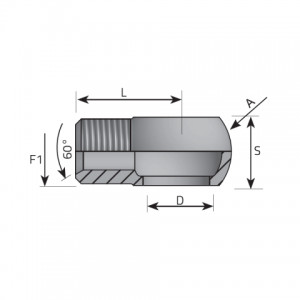

| Code | F1 mm | F1 Pitch mm | L mm | A mm | D mm | S mm |
|---|---|---|---|---|---|---|
| AOFM1010 | M 10.0 | X 1.00 | 24.00 | 17.00 | 10.00 | 10.00 |
| AOFM1212 | M 12.0 | X 1.50 | 24.00 | 20.00 | 12.00 | 12.00 |
| AOFM1414 | M 14.0 | X 1.50 | 24.00 | 24.00 | 14.00 | 14.00 |
| AOFM1616 | M 16.0 | X 1.50 | 29.00 | 28.00 | 16.00 | 17.00 |
| AOFM1816 | M 16.0 | X 1.50 | 28.00 | 32.00 | 18.00 | 20.00 |
| AOFM1818 | M 18.0 | X 1.50 | 32.00 | 32.00 | 18.00 | 20.00 |
| AOFM1822 | M 22.0 | X 1.50 | 32.00 | 32.00 | 18.00 | 23.00 |
| AOFM2018 | M 18.0 | X 1.50 | 32.00 | 35.00 | 20.00 | 22.00 |
| AOFM2020 | M 20.0 | X 1.50 | 32.00 | 35.00 | 20.00 | 22.00 |
| AOFM2218 | M 18.0 | X 1.50 | 30.00 | 35.00 | 22.00 | 23.00 |
| AOFM2222 | M 22.0 | X 1.50 | 32.00 | 35.00 | 22.00 | 23.00 |
| AOFM2626 | M 26.0 | X 1.50 | 38.00 | 46.00 | 26.00 | 29.00 |
