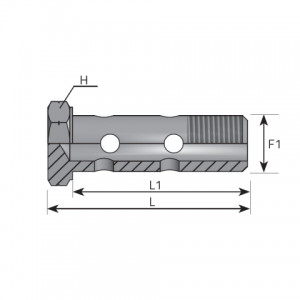

| Code | F1 mm | F1 Pitch mm | H mm | L mm | L1 mm | Pressure |
|---|---|---|---|---|---|---|
| ABFDM08 | M 8.0 | X 1.00 | 12 | 34.00 | 29.00 | 350 bar 5075 psi |
| ABFDM08X1.25 | M 8.0 | X 1.25 | 12 | 34.00 | 29.00 | 350 bar 5075 psi |
| ABFDM10 | M 10.0 | X 1.00 | 14 | 38.00 | 33.00 | 350 bar 5075 psi |
| ABFDM10X1.25 | M 10.0 | X 1.25 | 14 | 38.00 | 33.00 | 350 bar 5075 psi |
| ABFDM12 | M 12.0 | X 1.50 | 17 | 43.00 | 37.00 | 350 bar 5075 psi |
| ABFDM12X1.25 | M 12.0 | X 1.25 | 17 | 43.00 | 37.00 | 350 bar 5075 psi |
| ABFDM14 | M 14.0 | X 1.50 | 19 | 49.50 | 43.00 | 350 bar 5075 psi |
| ABFDM16 | M 16.0 | X 1.50 | 22 | 58.00 | 50.00 | 350 bar 5075 psi |
| ABFDM18 | M 18.0 | X 1.50 | 24 | 66.00 | 58.00 | 315 bar 4568 psi |
| ABFDM20 | M 20.0 | X 1.50 | 27 | 73.00 | 64.00 | 315 bar 4568 psi |
| ABFDM22 | M 22.0 | X 1.50 | 27 | 73.00 | 64.00 | 315 bar 4568 psi |
| ABFDM26 | M 26.0 | X 1.50 | 32 | 92.00 | 81.00 | 250 bar 3625 psi |
