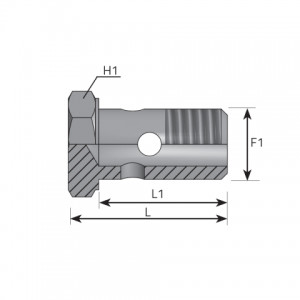

| Code | F1 inch | H1 mm | L mm | L1 mm | Pressure |
|---|---|---|---|---|---|
| ABFG02 | 1/8 | 14 | 24.50 | 19.00 | 350 bar 5075 psi |
| ABFG04 | 1/4 | 19 | 33.00 | 27.00 | 350 bar 5075 psi |
| ABFG06 | 3/8 | 22 | 40.00 | 32.50 | 350 bar 5075 psi |
| ABFG08 | 1/2 | 27 | 47.00 | 38.00 | 315 bar 4568 psi |
| ABFG10 | 5/8 | 30 | 49.00 | 41.00 | 315 bar 4568 psi |
| ABFG12 | 3/4 | 32 | 56.00 | 46.00 | 250 bar 3625 psi |
| ABFG16 | 1 | 41 | 70.50 | 57.00 | 200 bar 2900 psi |
| ABFG20 | 1 1/4 | 50 | 83.00 | 69.00 | 160 bar 2320 psi |
| ABFG24 | 1 1/2 | 55 | 80.00 | 69.00 | 125 bar 1813 psi |
