Branch Tee metric male – metric swivel female. (TMM..FGM..P)

Brand : Vitillo

Vitillo Bsp Fittings Branch Tee metric male – metric swivel female. (TMM..FGM..P)

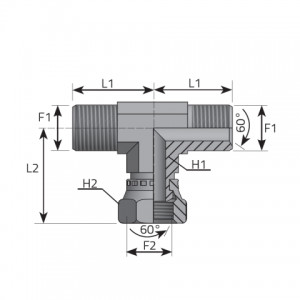

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H1 mm H2 mm L1 mm L2 mm Pressure
TMM12FGM12P M 12.0 X 1.50 M 12.0 X 1.50 14 15 20.00 28.50 350 bar
5075 psi
TMM14FGM14P M 14.0 X 1.50 M 14.0 X 1.50 14 19 27.00 30.50 350 bar
5075 psi
TMM16FGM16P M 16.0 X 1.50 M 16.0 X 1.50 19 22 29.00 36.00 350 bar
5075 psi
TMM18FGM18P M 18.0 X 1.50 M 18.0 X 1.50 19 22 29.00 36.00 315 bar
4568 psi
TMM20FGM20P M 20.0 X 1.50 M 20.0 X 1.50 22 27 36.50 39.00 315 bar
4568 psi
TMM22FGM22P M 22.0 X 1.50 M 22.0 X 1.50 22 27 36.50 39.00 315 bar
4568 psi
TMM26FGM26P M 26.0 X 1.50 M 26.0 X 1.50 27 32 42.50 45.00 250 bar
3625 psi
TMM30FGM30P M 30.0 X 1.50 M 30.0 X 1.50 33 41 50.00 50.00 200 bar
2900 psi
