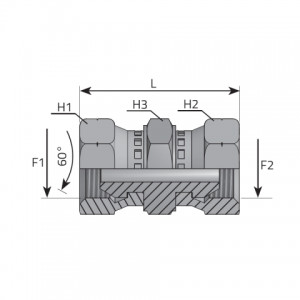

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H1 mm | H2 mm | H3 mm | L mm | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| AFFDM1010 | M 10.0 | X 1.00 | M 10.0 | X 1.00 | 15 | 15 | 14 | 38.00 | 350 bar 5075 psi |
| AFFDM1212 | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 17 | 14 | 37.00 | 350 bar 5075 psi |
| AFFDM1414 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 19 | 19 | 40.00 | 350 bar 5075 psi |
| AFFDM1616 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 22 | 22 | 43.50 | 350 bar 5075 psi |
| AFFDM1818 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 22 | 22 | 22 | 44.00 | 315 bar 4568 psi |
| AFFDM2020 | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 27 | 27 | 50.00 | 315 bar 4568 psi |
| AFFDM2222 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 27 | 27 | 50.00 | 315 bar 4568 psi |
| AFFDM2424 | M 24.0 | X 1.50 | M 24.0 | X 1.50 | 30 | 30 | 30 | 54.00 | 315 bar 4568 psi |
| AFFDM2626 | M 26.0 | X 1.50 | M 26.0 | X 1.50 | 32 | 32 | 32 | 56.50 | 250 bar 3625 psi |
