Adaptor male metric- metric swivel female. (AMFDM)

Brand : Vitillo

Vitillo Bsp Fittings Adaptor male metric- metric swivel female. (AMFDM)

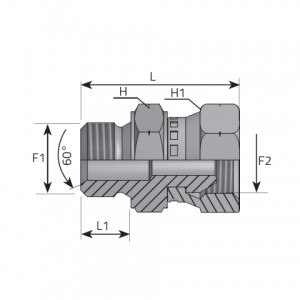

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm H1 mm L mm L1 mm Pressure
AMFDM1212 M 12.0 X 1.50 M 12.0 X 1.50 17 17 34.00 11.00 350 bar
5075 psi
AMFDM1414 M 14.0 X 1.50 M 14.0 X 1.50 19 19 35.00 11.00 350 bar
5075 psi
AMFDM1616 M 16.0 X 1.50 M 16.0 X 1.50 22 22 41.50 12.50 350 bar
5075 psi
AMFDM1818 M 18.0 X 1.50 M 18.0 X 1.50 22 24 42.00 14.00 315 bar
4568 psi
AMFDM2020 M 20.0 X 1.50 M 20.0 X 1.50 27 27 45.50 14.00 315 bar
4568 psi
AMFDM2222 M 22.0 X 1.50 M 22.0 X 1.50 27 27 45.50 14.00 315 bar
4568 psi
AMFDM2424 M 24.0 X 1.50 M 24.0 X 1.50 30 30 49.00 16.00 315 bar
4568 psi
AMFDM2626 M 26.0 X 1.50 M 26.0 X 1.50 32 32 51.50 16.00 250 bar
3625 psi
AMFDM3030 M 30.0 X 1.50 M 30.0 X 1.50 38 36 57.50 18.00 200 bar
2900 psi
