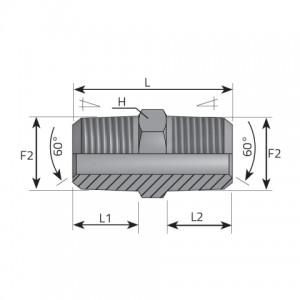

| Code | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| ANKK0202 | 1/8 | 1/8 | 12 | 26.00 | 10.00 | 10.00 | 350 bar 5075 psi |
| ANKK0404 | 1/4 | 1/4 | 17 | 35.00 | 14.00 | 14.00 | 350 bar 5075 psi |
| ANKK0606 | 3/8 | 3/8 | 19 | 36.00 | 14.00 | 14.00 | 350 bar 5075 psi |
| ANKK0808 | 1/2 | 1/2 | 22 | 47.50 | 19.00 | 19.00 | 315 bar 4568 psi |
| ANKK1212 | 3/4 | 3/4 | 27 | 48.00 | 19.00 | 19.00 | 250 bar 3625 psi |
| ANKK1616 | 1 | 1 | 36 | 52.00 | 21.00 | 21.00 | 200 bar 2900 psi |
| ANKK2020 | 1 1/4 | 1 1/4 | 46 | 63.50 | 24.00 | 24.00 | 160 bar 2320 psi |
| ANKK2424 | 1 1/2 | 1 1/2 | 50 | 66.00 | 26.00 | 26.00 | 125 bar 1813 psi |
| ANKK3232 | 2 | 2 | 65 | 73.00 | 28.00 | 28.00 | 80 bar 1160 psi |
