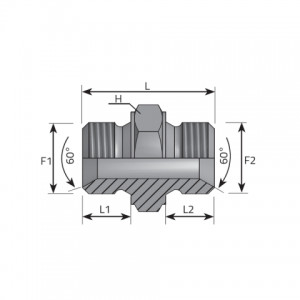

| Code | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| ANGG0202 | 1/8 | 1/8 | 14 | 25.00 | 9.50 | 9.50 | 350 bar 5075 psi |
| ANGG0404 | 1/4 | 1/4 | 19 | 29.00 | 11.00 | 11.00 | 350 bar 5075 psi |
| ANGG0606 | 3/8 | 3/8 | 22 | 34.00 | 12.50 | 12.50 | 350 bar 5075 psi |
| ANGG0808 | 1/2 | 1/2 | 27 | 38.00 | 14.00 | 14.00 | 315 bar 4568 psi |
| ANGG1010 | 5/8 | 5/8 | 30 | 42.00 | 16.00 | 16.00 | 315 bar 4568 psi |
| ANGG1212 | 3/4 | 3/4 | 32 | 42.00 | 16.00 | 16.00 | 250 bar 3625 psi |
| ANGG1616 | 1 | 1 | 41 | 48.00 | 18.00 | 18.00 | 200 bar 2900 psi |
| ANGG2020 | 1 1/4 | 1 1/4 | 50 | 54.00 | 20.00 | 20.00 | 160 bar 2320 psi |
| ANGG2424 | 1 1/2 | 1 1/2 | 55 | 57.00 | 21.00 | 21.00 | 125 bar 1813 psi |
| ANGG3232 | 2 | 2 | 70 | 67.00 | 25.00 | 25.00 | 80 bar 1160 psi |
