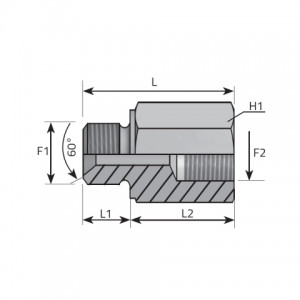

| Code | F1 inch | F2 inch | H1 mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| APMFG0230.5 | 1/8 | 1/8 | 14 | 30.50 | 9.50 | 21.00 | 350 bar 5075 psi |
| APMFG0433 | 1/4 | 1/4 | 19 | 33.00 | 11.00 | 22.00 | 350 bar 5075 psi |
| APMFG0442 | 1/4 | 1/4 | 19 | 42.00 | 11.00 | 31.00 | 350 bar 5075 psi |
| APMFG0450 | 1/4 | 1/4 | 19 | 50.00 | 11.00 | 39.00 | 350 bar 5075 psi |
| APMFG0455 | 1/4 | 1/4 | 19 | 55.00 | 11.00 | 44.00 | 350 bar 5075 psi |
| APMFG0635 | 3/8 | 3/8 | 22 | 35.00 | 12.50 | 22.50 | 350 bar 5075 psi |
| APMFG0639 | 3/8 | 3/8 | 22 | 39.00 | 12.50 | 26.50 | 350 bar 5075 psi |
| APMFG0642 | 3/8 | 3/8 | 22 | 42.00 | 12.50 | 29.50 | 350 bar 5075 psi |
| APMFG0654 | 3/8 | 3/8 | 22 | 54.00 | 12.50 | 41.50 | 350 bar 5075 psi |
| APMFG0840 | 1/2 | 1/2 | 27 | 40.00 | 14.00 | 26.00 | 315 bar 4568 psi |
| APMFG0845 | 1/2 | 1/2 | 27 | 45.00 | 14.00 | 31.00 | 315 bar 4568 psi |
| APMFG0850 | 1/2 | 1/2 | 27 | 50.00 | 14.00 | 36.00 | 315 bar 4568 psi |
| APMFG0860 | 1/2 | 1/2 | 27 | 60.00 | 14.00 | 46.00 | 315 bar 4568 psi |
| APMFG1248 | 3/4 | 3/4 | 32 | 48.00 | 16.00 | 32.00 | 250 bar 3625 psi |
| APMFG1257 | 3/4 | 3/4 | 32 | 57.00 | 16.00 | 41.00 | 250 bar 3625 psi |
| APMFG1267 | 3/4 | 3/4 | 32 | 67.00 | 16.00 | 51.00 | 250 bar 3625 psi |
| APMFG1272 | 3/4 | 3/4 | 32 | 72.00 | 16.00 | 56.00 | 250 bar 3625 psi |
| APMFG1654 | 1 | 1 | 41 | 54.00 | 18.00 | 36.00 | 200 bar 2900 psi |
| APMFG1660 | 1 | 1 | 41 | 60.00 | 18.00 | 42.00 | 200 bar 2900 psi |
| APMFG1680 | 1 | 1 | 41 | 80.00 | 18.00 | 62.00 | 200 bar 2900 psi |
| APMFG2062 | 1 1/4 | 1 1/4 | 50 | 62.00 | 20.00 | 42.00 | 160 bar 2320 psi |
| APMFG2092 | 1 1/4 | 1 1/4 | 50 | 92.00 | 20.00 | 72.00 | 160 bar 2320 psi |
| APMFG2465 | 1 1/2 | 1 1/2 | 55 | 65.00 | 22.00 | 43.00 | 125 bar 1813 psi |
| APMFG2495 | 1 1/2 | 1 1/2 | 55 | 95.00 | 22.00 | 73.00 | 125 bar 1813 psi |
| APMFG3257 | 2 | 2 | 70 | 57.00 | 25.00 | 32.00 | 80 bar 1160 psi |
| APMFG3262 | 2 | 2 | 70 | 62.00 | 25.00 | 37.00 | 80 bar 1160 psi |
