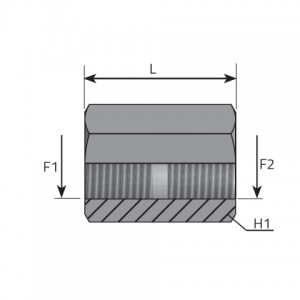

Code | F1 inch | F2 inch | H1 mm | L mm | Pressure |
---|---|---|---|---|---|
APFFG0202 | 1/8 | 1/8 | 14 | 25.00 | 350 bar 5075 psi |
APFFG0404 | 1/4 | 1/4 | 19 | 30.00 | 350 bar 5075 psi |
APFFG0606 | 3/8 | 3/8 | 22 | 35.00 | 350 bar 5075 psi |
APFFG0808 | 1/2 | 1/2 | 27 | 40.00 | 315 bar 4568 psi |
APFFG1010 | 5/8 | 5/8 | 27 | 35.00 | 315 bar 4568 psi |
APFFG1212 | 3/4 | 3/4 | 32 | 40.00 | 250 bar 3625 psi |
APFFG1616 | 1 | 1 | 41 | 50.00 | 200 bar 2900 psi |
APFFG2020 | 1 1/4 | 1 1/4 | 50 | 55.00 | 160 bar 2320 psi |
APFFG2424 | 1 1/2 | 1 1/2 | 55 | 60.00 | 125 bar 1813 psi |
APFFG3232 | 2 | 2 | 70 | 54.00 | 80 bar 1160 ps |
