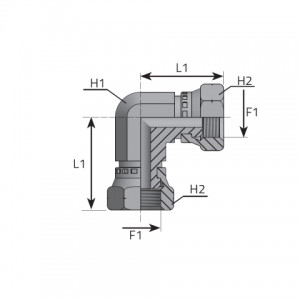

| Code | F1 mm | F1 Pitch mm | H1 mm | H2 mm | L1 mm | Pressure |
|---|---|---|---|---|---|---|
| LFGM12 | M 12.0 | X 1.50 | 14 | 15 | 28.50 | 350 bar 5075 psi |
| LFGM14 | M 14.0 | X 1.50 | 14 | 19 | 30.50 | 350 bar 5075 psi |
| LFGM16 | M 16.0 | X 1.50 | 19 | 22 | 36.00 | 350 bar 5075 psi |
| LFGM18 | M 18.0 | X 1.50 | 19 | 22 | 36.00 | 315 bar 4568 psi |
| LFGM20 | M 20.0 | X 1.50 | 22 | 27 | 39.00 | 315 bar 4568 psi |
| LFGM22 | M 22.0 | X 1.50 | 22 | 27 | 39.00 | 315 bar 4568 psi |
| LFGM26 | M 26.0 | X 1.50 | 27 | 32 | 45.00 | 250 bar 3625 psi |
| LFGM30 | M 30.0 | X 1.50 | 33 | 41 | 50.00 | 200 bar 2900 psi |
