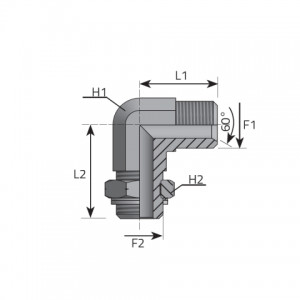

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| LMM10MOMR12 | M 10.0 | X 1.00 | M 12.0 | X 1.50 | 14 | 14 | 22.00 | 26.00 | 350 bar 5075 psi |
| LMM12MOMR12 | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 14 | 22.00 | 26.00 | 350 bar 5075 psi |
| LMM12MOMR14 | M 12.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 19 | 22.00 | 34.00 | 350 bar 5075 psi |
| LMM14MOMR14 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 19 | 26.00 | 34.00 | 350 bar 5075 psi |
| LMM14MOMR16 | M 14.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 19 | 26.00 | 37.00 | 350 bar 5075 psi |
| LMM16MOMR16 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 22 | 29.00 | 37.00 | 350 bar 5075 psi |
| LMM16MOMR18 | M 16.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 22 | 29.00 | 37.00 | 315 bar 4568 psi |
| LMM18MOMR18 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 22 | 29.00 | 37.00 | 315 bar 4568 psi |
| LMM18MOMR22 | M 18.0 | X 1.50 | M 22.0 | X 1.50 | 22 | 27 | 36.50 | 45.00 | 315 bar 4568 psi |
| LMM22MOMR22 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 22 | 27 | 36.50 | 45.00 | 315 bar 4568 psi |
| LMM26MOMR22 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 36 | 38.50 | 48.50 | 250 bar 3625 psi |
| LMM26MOMR27 | M 26.0 | X 1.50 | M 27.0 | X 2.00 | 27 | 36 | 42.00 | 48.50 | 200 bar 2900 psi |
| LMM30MOMR27 | M 30.0 | X 1.50 | M 27.0 | X 2.00 | 33 | 41 | 47.00 | 53.00 | 180 bar 2610 psi |
| LMM30MOMR33 | M 30.0 | X 1.50 | M 33.0 | X 2.00 | 33 | 41 | 50.00 | 53.00 | 180 bar 2610 psi |
