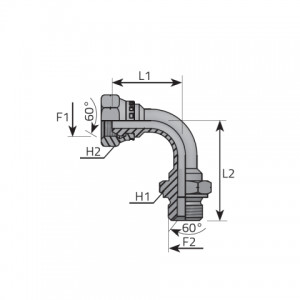

| Code | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L mm | L1 mm | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| AMF90M1010 | M 10.0 | X 1.00 | M 10.0 | X 1.00 | 14 | 15 | 29.00 | 33.00 | 350 bar 5075 psi |
| AMF90M1212 | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 17 | 35.00 | 33.00 | 350 bar 5075 psi |
| AMF90M1414 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 19 | 28.00 | 30.00 | 350 bar 5075 psi |
| AMF90M1616 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 22 | 39.00 | 48.00 | 350 bar 5075 psi |
| AMF90M1818 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 24 | 41.00 | 48.00 | 315 bar 4568 psi |
| AMF90M2020 | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 27 | 44.50 | 61.50 | 315 bar 4568 psi |
| AMF90M2222 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 27 | 44.50 | 61.50 | 315 bar 4568 psi |
| AMF90M2424 | M 24.0 | X 1.50 | M 24.0 | X 1.50 | 30 | 30 | 54.00 | 69.00 | 315 bar 4568 psi |
| AMF90M2626 | M 26.0 | X 1.50 | M 26.0 | X 1.50 | 32 | 32 | 55.50 | 77.00 | 250 bar 3625 psi |
