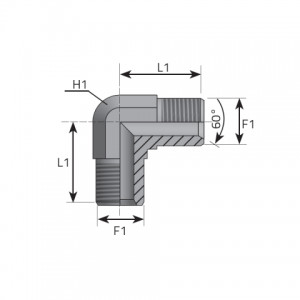

| Code | F1 mm | F1 Pitch mm | H1 mm | L1 mm | Pressure |
|---|---|---|---|---|---|
| LMM10 | M 10.0 | X 1.00 | 14 | 22.00 | 350 bar 5075 psi |
| LMM12 | M 12.0 | X 1.50 | 14 | 22.00 | 350 bar 5075 psi |
| LMM14 | M 14.0 | X 1.50 | 14 | 27.00 | 350 bar 5075 psi |
| LMM16 | M 16.0 | X 1.50 | 19 | 29.00 | 350 bar 5075 psi |
| LMM18 | M 18.0 | X 1.50 | 19 | 29.00 | 315 bar 4568 psi |
| LMM20 | M 20.0 | X 1.50 | 22 | 36.50 | 315 bar 4568 psi |
| LMM22 | M 22.0 | X 1.50 | 22 | 36.50 | 315 bar 4568 psi |
| LMM26 | M 26.0 | X 1.50 | 27 | 42.00 | 250 bar 3625 psi |
| LMM30 | M 30.0 | X 1.50 | 33 | 50.00 | 200 bar 2900 psi |
