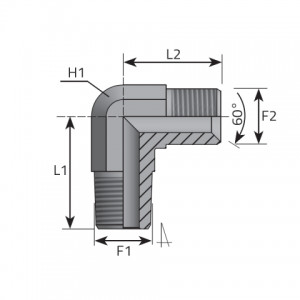

| Code | F1 inch | F2 inch | H1 mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| LMGK02MG02 | 1/8 | 1/8 | 14 | 20.50 | 22.00 | 350 bar 5075 psi |
| LMGK04MG04 | 1/4 | 1/4 | 14 | 28.00 | 27.00 | 350 bar 5075 psi |
| LMGK06MG06 | 3/8 | 3/8 | 19 | 31.00 | 29.00 | 350 bar 5075 psi |
| LMGK08MG08 | 1/2 | 1/2 | 22 | 37.50 | 36.50 | 315 bar 4568 psi |
| LMGK08MG10 | 1/2 | 5/8 | 27 | 37.50 | 36.50 | 315 bar 4568 psi |
| LMGK12MG12 | 3/4 | 3/4 | 27 | 42.00 | 42.00 | 250 bar 3625 psi |
| LMGK16MG16 | 1 | 1 | 33 | 50.00 | 50.00 | 200 bar 2900 psi |
| LMGK20MG20 | 1 1/4 | 1 1/4 | 41 | 60.00 | 56.00 | 160 bar 2320 psi |
