45° Connector Swivel Female Metric-Male Metric. (AMF45M)

Brand : Vitillo

Vitillo Bsp Fittings 45° Connector Swivel Female Metric-Male Metric. (AMF45M)

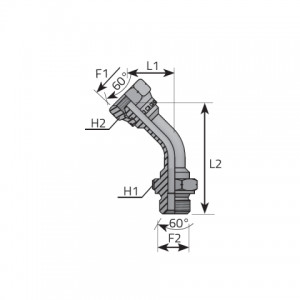

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H1 mm H2 mm L mm L1 mm Pressure
AMF45M1010 M 10.0 X 1.00 M 10.0 X 1.00 14 15 350 bar
5075 psi
AMF45M1212 M 12.0 X 1.50 M 12.0 X 1.50 17 17 350 bar
5075 psi
AMF45M1414 M 14.0 X 1.50 M 14.0 X 1.50 19 19 23.00 55.00 350 bar
5075 psi
AMF45M1616 M 16.0 X 1.50 M 16.0 X 1.50 22 22 34.00 65.00 350 bar
5075 psi
AMF45M1818 M 18.0 X 1.50 M 18.0 X 1.50 24 24 30.00 81.00 315 bar
4568 psi
AMF45M2020 M 20.0 X 1.50 M 20.0 X 1.50 27 27 30.00 81.00 315 bar
4568 psi
AMF45M2222 M 22.0 X 1.50 M 22.0 X 1.50 27 27 30.00 81.00 315 bar
4568 psi
AMF45M2424 M 24.0 X 1.50 M 24.0 X 1.50 30 30 315 bar
4568 psi
AMF45M2626 M 26.0 X 1.50 M 26.0 X 1.50 32 32 35.00 115.00 250 bar
3625 psi
